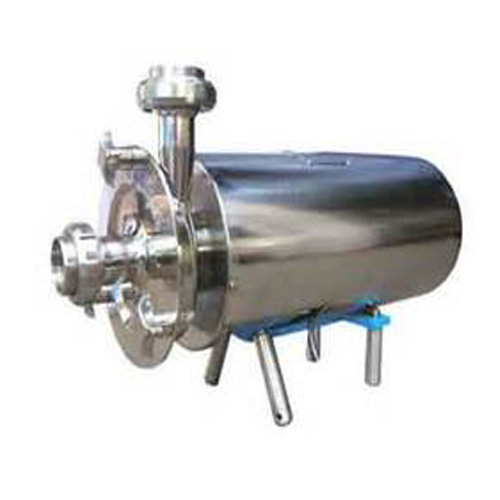

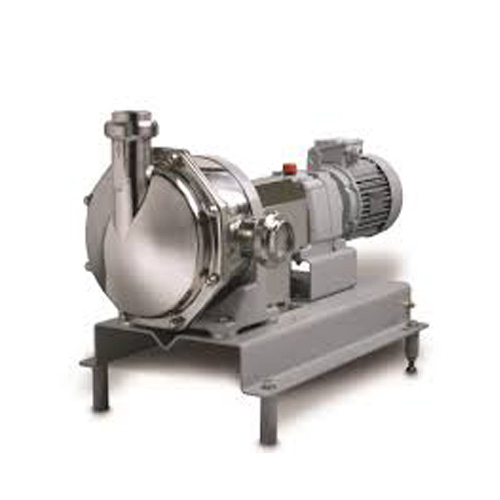

We are one of the prominent Manufacturers, Exporters and Suppliers of Dairy Pump. Under this range, we offer Beverage Pump, Food Processing Pump, Hygienic Pump, Milk Transfer Pump and Sparkler Filter Press Pump. Our clients have always appreciated our range of Dairy Pumps for their high efficiency and quality. These Dairy Pumps are manufactured from high grade components and technologically advanced machinery to ensure higher customer satisfaction

Standard Features:

• Centrifugal single stage
• Flange as per din standard
• Design : Back pull out
• Impeller : Open / close
• Shaft sealing : Single / doable mechanical seal
• Sealed grease lubricated , deep grove ball bearing
• Pump handle liquid having viscosities up to 1500 centrioles
• Flame proof motor

Specification:

• Head : 48 meter
• Capacity : 33 m3/h
• Delivery size : 12mm to 65 mm
• Temperature : 10 to 95 degree Celsius
• Test pressure : 10 kg/cm2

Optional Features:

• Shaft sealing by gland packing
• Bearing lubricating by oil
• Ansi drilling on din flanges
• Trolley mounting arrangement
• Various type of connection

Material:

• Casing : St. Steel ( CF8 / CF8M )
• Shaft : St. Steel ( SS 410 / SS 316 / SS 304 )
• Impeller : St. Steel ( SS 410 / SS 316 / SS 304 )
• Back Plate : St. Steel ( SS 410 / SS 316 / SS 304 )
• Mechanical Seal : TC/TC , SIC/SIC TEFLON/ GFT
• Motor Cover : SS 304 , SS 316
• Gasket : Viton / Nitrile/ Silicon / PTFE
