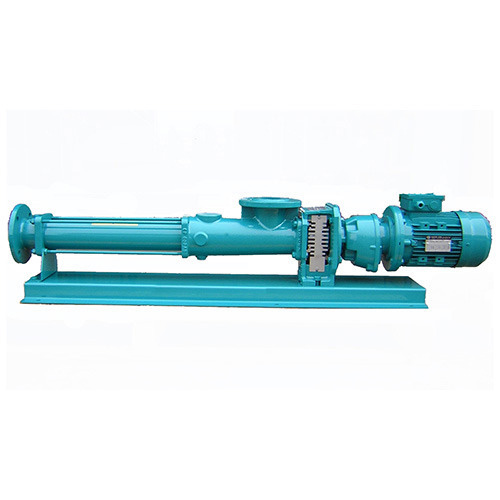

Single Screw Pump
Product Details:
- Model: All Sizes Available
- Max Flow Rate: 0-200 M??/HR
- Head: 48 Bar
Single Screw Pump enables efficient, hygienic and optimally adapted transport and production processes for the viscosities in various industries. It conveys various viscosities of liquids, especially thick hard to medium like solid particles, fibers, suspended solids.
Features:
- Quick and easy manual cleaning
- Large viscosity range
- High priming capacity
Specification:
- Material: CI, Alloy Steel, SS 304, SS 316 Internals,
- Stator Material: Nitrile, EPDM, Hypalon, Viton
- Viscosity: 1000000 CST
- Temperature: Up to 120 Deg C
- Price Range : 16,000 - 1000,000 INR
Application:
- Food, pharmaceuticals, paper industries, chemical industries, waste water industries, textile and petro chemicals etc.

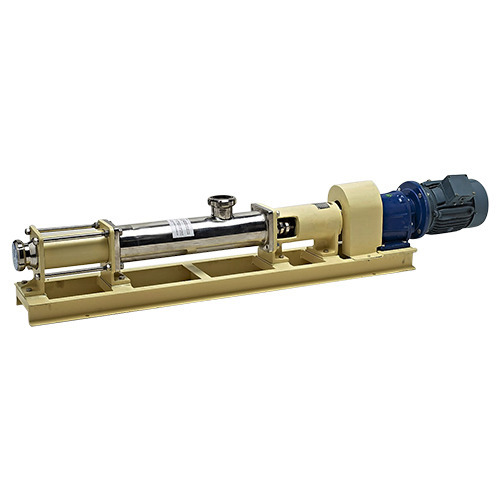

Hygienic Screw Pump
Product Details:
- Model: All Sizes Available
- Max Flow Rate: 0-200 M??/HR
- Head: 48 Bar
This Hygienic Screw Pump is a part of the hygienic pumping solutions designed to reliably pump low to highly viscous, volatile or gaseous products and for applications where maximum hygiene and efficiency is required. It is widely used for food and pharmaceutical industry.
Features:
- High suction performance for more production efficiency
- Smooth and pulsation free handling for sensitive products
- Designed for reverse flow capabilities
Specification:
- Material: SS 304, SS 316L, SS 316L
- Stator : NCR (Non-Contaminated Rubber Food Grade)
- Viscosity: 1000000 CST
- Temperature: Up to 120 Deg C
- Price Range : 30,000 - 1500,000 INR
Application:
- Food and pharmaceutical industries.

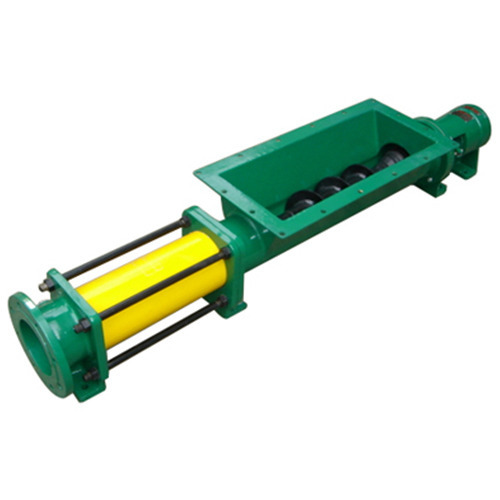

Wide Throat Single Screw Pump
Product Details:
- Max Flow Rate: 200 m3/hR
- Head: 48 bAR
Wide Throat Single Screw Pump is sanitary progressive cavity pump. These types of pumps transfer products of low and high viscosity as well as products containing particles. They are widely used to pump edible oils, wine, concentrates and beverages in general as well as viscous food products such as jam and marmalade, pasta, etc.
Features:
- High strength
- Anti-corrosive
- Longer service life
Specification:
- Price Range: 30,000-1,00000

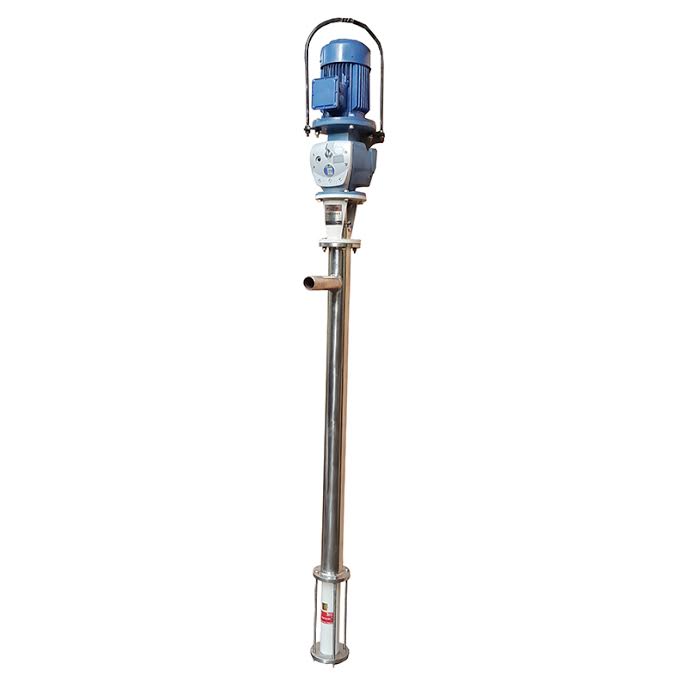

Barrel Pump
SPECIALLY FOR DELIVERY OF HIGH VISCOUS PASTY MEDEA FROM NARROW CONTAINERS OR BARREL
OPERATING PARAMETERS:
- Capacity : Up to 7 M3 / Hr.
- Pressure : Up to 4 Bar
- Temp. : Up to 120° C
- Viscosity : 50,000 CPS
Wide Throat Single Screw Pump is sanitary progressive cavity pump. These types of pumps transfer products of low and high viscosity as well as products containing particles. They are widely used to pump edible oils, wine, concentrates and beverages in general as well as viscous food products such as jam and marmalade, pasta, etc.
Salient Features of Barrel Pumps:
- Continuous delivery flow proportional to the speed to thus very suitable for dosing Purpose.
- High Pressure Delivery
- No, valves, flaps or hollow shafts susceptible to clogging
- Perfect Delivery-also of highly viscous media
Application:
- Cream,Glucose, Lubricating oil, Malt Extract, Paint, Putty, Varnish etc...
